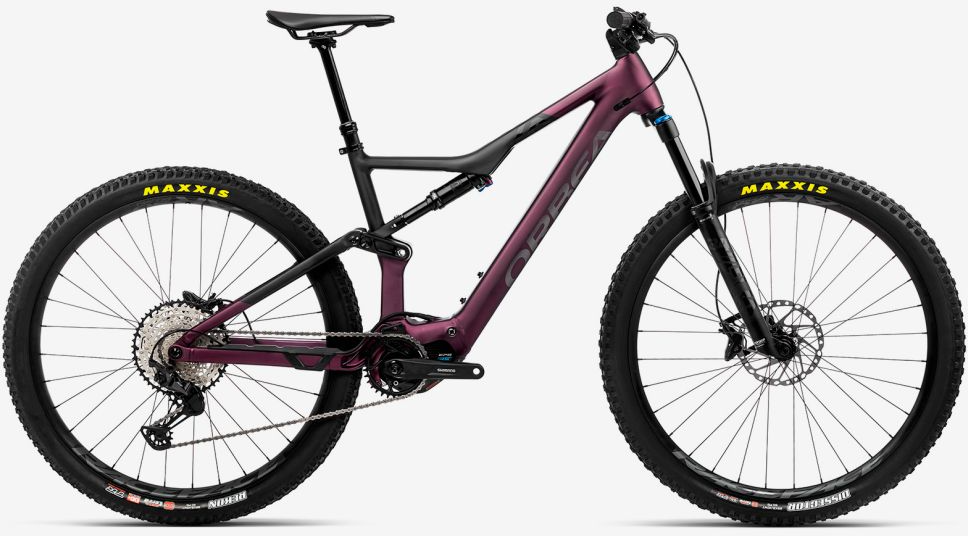

Orbea Rise H20 20mph

Orbea Rise H20 20mph
  • Color: Metallic Mulberry/Black (Matt)
$5,499.95
$5,999.00
Color: Metallic Mulberry/Black (Matt)
Size: X-Large
Please select options Unavailable

Details

Rise shook up the lightweight e-MTB world on its launch with its “more bike, less E” philosophy. Simply the most natural feeling ebike on the market, bringing riders closer to the trail and shattering expectations about how an ebike should ride.

Geometry Chart:
SmallMediumLargeX-Large
1 1 - HEAD TUBE LENGTH 381 419 457 508
2 2 - CHAINSTAY LENGTH (ACTUAL) 565 592 619 649
3 3 - BB DROP 95 105 120 140
4 4 - WHEEL BASE 445 445 445 445
5 5 - SEAT ANGLE (VIRTUAL) 336 336 336336 336
6 6 - STANDOVER HEIGHT* 35/32 35/32 35/32 35/32
7 7 - BB - FRONT WHEEL AXLE 1180 1205 1229 1255
8 8 - TRAIL 66º/65,5º 66º/65,5º 66º/65,5º 66º/65,5º
9 9 - WIDTH 77º/76,5º 77º/76,5º 77º/76,5º 77º/76,5º
10 10 - STACK HIGH POSITION 710 736 766 776
11 10 - STACK LOW POSITION 425 450 474 500
12 11 - REACH 604 613 627 646
13 12 - STACK MAX 547 547 547 547
Sizes:
Frame SizeRider height (in)
Small 59.1"-65.0"
Medium 63.0"-68.9"
Large 66.9"-72.8"
X-Large 70.9"-78.0"

Specs

Frame Orbea Rise Hydro 140mm travel 29" Boost 12x148
Fork Fox 34 Float Performance 140 3-Position QR15x110
Rear Shock Fox Float DPS Performance 3-Position Evol custom tune 210x55mm
Wheels Race Face AR 30c Tubeless Ready
Tires Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR
Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
Crankset Shimano Steps EM600
Chainrings e*thirteen e*spec Direct Mount 32T Boost
Shifters Shimano SLX M7100 I-Spec EV
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M7100 10-51t 12-Speed
Chain Shimano M6100
Brakes Shimano M6120 Hydraulic Disc
Rotors 180mm Front /180mm Rear
Handlebars OC Mountain Control MC31, Rise20, Width 800
Stem OC Mountain Control MC20, 0º
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost OC Mountain Control MC20, 31.6mm, Dropper
Saddle Fizik Taiga S-alloy rail
Pedals Sold separately
Motor Shimano EP600-RS
Battery Orbea Internal 540Wh (Optional 250 Wh Range Extender)
Controller/Display EN600-L
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Metallic Mulberry/Black (Matt) / X-Large 08434446367250 N67109V7 210000000602
